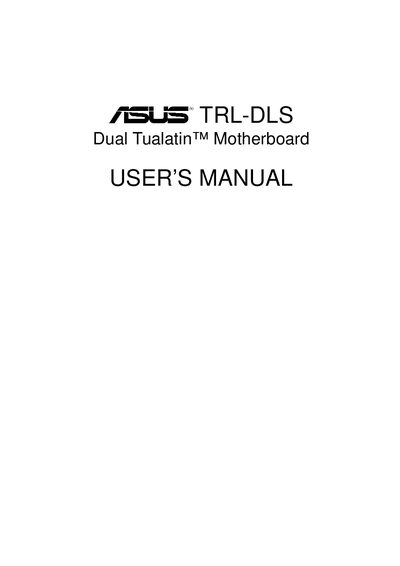

This is a user manual for the ASUS TRL-DLS Dual Tualatin™ Motherboard, describing the features and characteristics of the product.
The ASUS TRL-DLS motherboard user manual guides the installation and configuration of this dual‑processor server board. It covers hardware components, BIOS settings, and required software drivers.
Key sections include hardware setup procedures, BIOS configuration menus, OS driver installation for Linux, SCO OpenServer and RedHat, and reference tables for component locations and jumper settings.
| Processor Support | Dual Socket 370 Intel Pentium III Coppermine (256KB L2) and Tualatin (512KB L2) up to 1.53 GHz, 133 MHz FSB |
|---|---|
| Host Bridge | ServerWorks® CNB20HE‑SL North Bridge |
| I/O Bridge | ServerWorks® CIOB20, dual 64‑bit/66 MHz PCI buses |
| South Bridge | ServerWorks® CSB5, 32‑bit/33 MHz PCI, 4‑port USB 1.1, ACPI |
| LPC Super I/O | NS 87417 LPC controller with UART and parallel port |
| LAN Controller | Intel 82550 Fast Ethernet controller |
| SCSI Support | Adaptec AIC7899W 64‑bit/66 MHz Ultra160 SCSI controller, up to 30 devices |
It supports dual Socket 370 Intel Pentium III Coppermine (256 KB L2) and Tualatin (512 KB L2) processors up to 1.53 GHz with a 133 MHz front‑side bus.
The motherboard uses an Intel 82550 Fast Ethernet LAN controller.
Copy the driver file to a directory, rename it to VOL.000.000, make it read‑only, then run the ‘custom’ installer and follow the prompts; finally reboot the system.
