C.P965 Deluxe Ver2.2 is a motherboard with Intel P965+ICH8 chipset. It supports Intel Socket 775 Conroe/Pentium D/Pentium 4/Celeron D Prescott CPU, DDR2 400/533/667/800MHz memory, 1 IDE, 1 IDE ATA66/ATA100, 1 FDD 360K/720K/1.2M/1.44M/2.88M, 4 SATA2 3Gb/s, 10 USB USB2.0 USB 1.1, 1 COM 16550 UART, 2 PS/2, 1 PC, 2 RJ-45 LAN, 1 SPDIF OUT, 1 SPDIF IN.

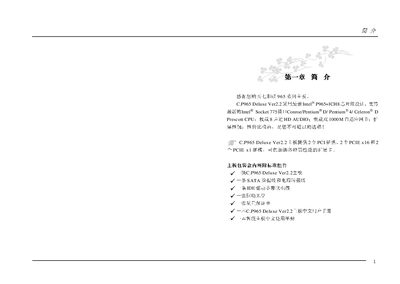

This manual describes the Colorful C.P965 Deluxe Ver2.2 motherboard, which uses an Intel Socket 775 and supports Conroe, Pentium D, Pentium 4 and Celeron D Prescott CPUs. It offers four DDR2 DIMM slots, dual‑channel memory up to 800 MHz, four SATA2 ports, ten USB ports (USB 2.0), a Gigabit LAN port, and an 8‑channel HD audio codec (ALC883). The board also features Dual BIOS for added reliability.
The guide covers hardware installation, including CPU and memory placement, connector wiring, and slot usage. It explains BIOS configuration, CMOS clearing procedures, and provides troubleshooting tips for common issues. This manual is written in Chinese.
| CPU socket | Socket 775 |
|---|---|
| Front‑Side Bus frequencies | 533 MHz / 800 MHz / 1066 MHz |
| Memory slots | 4 × 240‑pin DDR2 DIMM slots (1.8 V) |
| Memory type and speed | DDR2 533 MHz / 667 MHz / 800 MHz, dual‑channel |
It uses an Intel Socket 775.
There are four 240‑pin DDR2 DIMM slots (1.8 V) that support dual‑channel operation.
