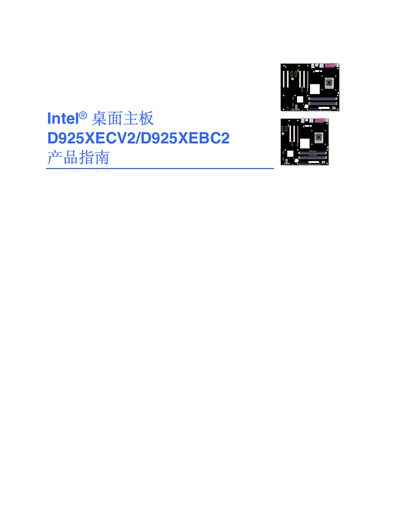

This document is a product guide for Intel® Desktop Board D925XECV2/D925XEBC2, which describes the features and characteristics of the product.
This product guide details the features, specifications, and installation procedures for Intel's D925XECV2 (ATX) and D925XEBC2 (MicroATX) desktop motherboards. It includes information on supported processors, memory configurations, chipset components, audio and LAN subsystems, and power‑management functions.
The document also covers BIOS setup and update methods, error‑message codes, safety and EMC compliance standards, and provides reference tables and diagrams for connectors, slots, and system integration. It is intended for qualified technical personnel rather than general end‑users. This manual is written in Chinese.
| Form factor (D925XECV2) | ATX (12.00" x 9.60") |
|---|---|
| Form factor (D925XEBC2) | MicroATX (9.60" x 9.60") |
| Supported processor socket | LGA775 for Intel Pentium 4 (800 MHz or 1066 MHz FSB) |
| Chipset | Intel 925XE Express (MCH 82925XE, ICH6‑R) |
| Audio codec | Intel High‑Definition Audio codec |
| LAN controller | Marvell 88E8050 Gigabit Ethernet (10/100/1000 Mbit) |
| USB ports | Up to eight USB 2.0 ports (four rear, four front) |
| SATA connectors | Four SATA ports |
| PCI Express slots | One PCIe x16; two PCIe x1 (D925XECV2) or one PCIe x1 (D925XEBC2) |
The boards support Microsoft Windows XP and Microsoft Windows 2000.
The D925XECV2 uses an ATX form factor, while the D925XEBC2 uses a MicroATX form factor.
It provides up to eight USB 2.0 ports, four on the rear panel and four via front‑panel connectors.
The boards use an LGA775 socket and are compatible with Intel Pentium 4 processors with 800 MHz or 1066 MHz front‑side bus.
