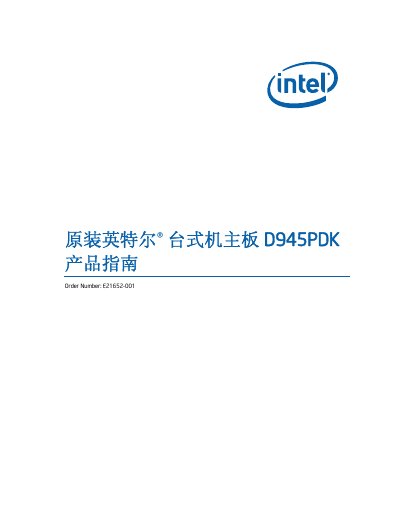

This Product Guide provides information on the board layout, component installation, BIOS updates, and specification requirements for the Original Intel® Desktop Board D945PDK.
This guide covers the Intel D945PDK desktop motherboard, describing its ATX form factor, supported processors, memory, chipset, audio, LAN, USB and expansion slots. It is intended for qualified technicians who need detailed installation, replacement and configuration instructions.
The document also includes BIOS update procedures, error‑code explanations, compliance with FCC, CE and ENERGY STAR standards, and hardware management features such as fan control and power‑management functions. This manual is written in Chinese.
| Form factor | ATX (218.44 mm × 304.80 mm) |
|---|---|
| Processor socket | LGA775 |
| Chipset | Intel 945P Express (MCH) + Intel 82801GB ICH7 |
| Audio codec | Realtek ALC662 6‑channel HD audio |
| LAN controller | Realtek RTL8111C Gigabit Ethernet |
| USB ports | 8 × USB 2.0 (4 rear, 4 front) |
| SATA ports | 4 × SATA (3 Gb/s) |
| PCI Express slots | 1 × PCIe x16, 2 × PCIe x1 |
| PCI slots | 4 × PCI |
It uses an LGA775 socket for Intel processors.
The board supports up to 4 GB of DDR2 SDRAM across four DIMM slots.
It provides eight USB 2.0 ports, four on the rear panel and four on the front panel.
