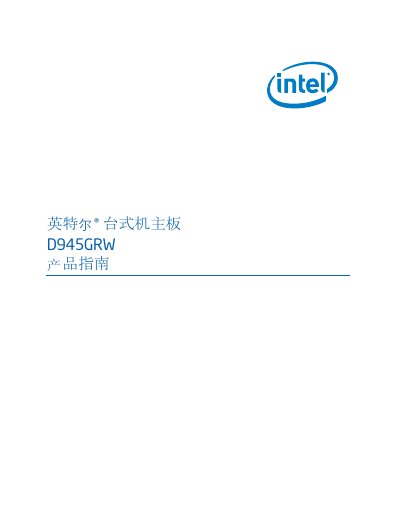

Intel® Desktop Board D945GRW Product Guide, introduces the features and characteristics of this board, and how to install, configure, and use it.
This guide covers the D945GRW motherboard’s features, supported processors, memory options, chipset details, graphics, audio, I/O, and power management. It includes detailed installation instructions, component replacement steps, and BIOS update utilities.
Compliance sections describe FCC, CE, and other regulatory certifications, while the appendix lists part numbers, warranty notes, and recycling program information. The document is intended for technical staff responsible for system integration and maintenance. This manual is written in Chinese.
| Form factor | PicoBTX (10.5" x 8.0") |
|---|---|
| Processor socket | LGA775 |
| Memory slots | 4 x 240‑pin DDR2 DIMM, up to 4 GB |
| Maximum memory | 4 GB DDR2 |
| Chipset | Intel 945G Express (GMCH 82945G, ICH7) |
| Integrated graphics | Intel Graphics Media Accelerator 950 |
| Audio | Intel High Definition Audio with Realtek codec |
| USB ports | 8 x USB 2.0 (6 rear, 2 internal) |
| SATA ports | 2 x SATA 3.0 Gb/s |
| LAN controller | Intel 82573L 10/100/1000 Ethernet |
It uses an LGA775 socket for Intel processors.
The board provides up to eight USB 2.0 ports—six on the rear panel and two internal connectors.
The motherboard supports up to 4 GB of DDR2 SDRAM.
It includes the Intel Graphics Media Accelerator 950.
