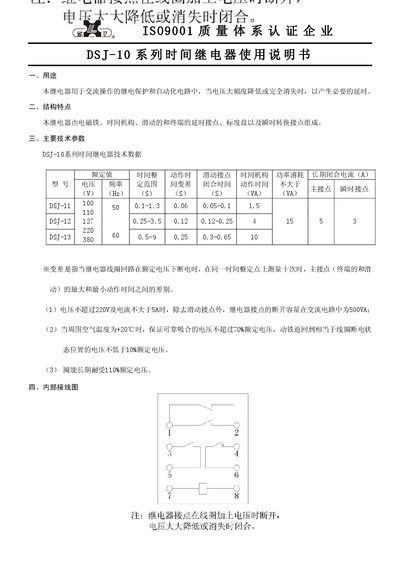

This document introduces the uses, structural characteristics, main technical parameters, normal operating conditions, and external dimensions and installation sizes of the DSJ-10 series time relay.
The DSJ-10 series time relay is designed for AC operation and provides a necessary delay when the input voltage drops significantly or disappears. It features a magnetic core, timing mechanism, sliding contacts, and auxiliary contacts for reliable performance.
The manual lists technical parameters, environmental operating conditions, dimensions, and installation instructions, including recommended mounting tilt, temperature and humidity limits, and contact ratings. Contact information for Xinling Electrical Co., Ltd. is also provided. This manual is written in Chinese.
| Rated voltage | 220 V |
|---|---|
| Operating temperature range | -25 °C to +40 °C |
| Maximum humidity | 90 % RH |
| Maximum installation tilt | 5° |
The relay is rated for a maximum voltage of 220 V and a maximum current of 5 A.
