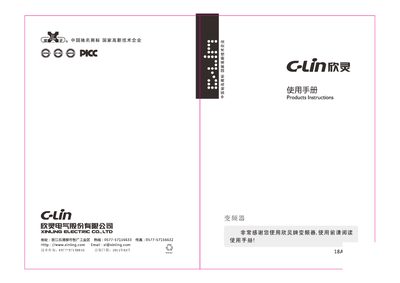

This manual provides safety instructions, installation, wiring, operation, parameter tables and maintenance guidance for the XINLING XL P3300‑G5.5/T4MA…
The manual begins with safety symbols, definitions and usage limits, emphasizing proper grounding, moisture protection and temperature restrictions for reliable operation. It then describes the product, its specifications and recommended installation environment, including indoor, well‑ventilated locations with temperature ‑10 °C to 45 °C and humidity below 90 %.
Subsequent chapters cover detailed installation and wiring procedures, keyboard operation, functional parameter tables, system and motor parameters, as well as inspection, maintenance and warranty information. Appendices list optional accessories, electromagnetic interference protection measures and a user warranty form. This manual is written in Chinese.
| Input Voltage | 3PH AC 380 V, 50/60 Hz |
|---|---|
| Output Voltage | 3PH AC 0‑380 V, 0‑600 Hz |
| Rated Power | 5.5 kW |
| Rated Current | 13 A |
| Model | XL P3300‑G5.5/T4MA |
