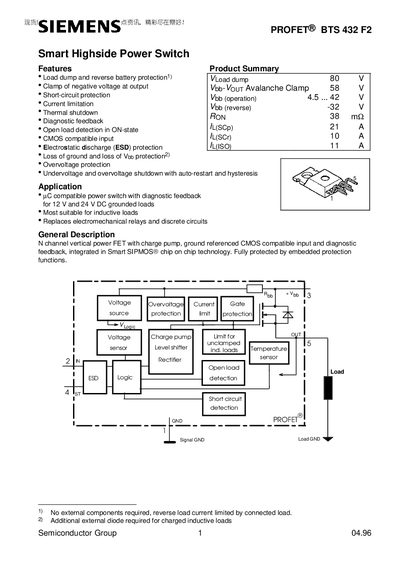

PROFET® BTS 432 F2 is a high side power switch with load dump and reverse battery protection, negative output voltage clamp, short circuit protection, current limitation, thermal shutdown, diagnostic feedback, open load detection in ON-state, CMOS compatible input, electrostatic discharge (ESD) protection, loss of ground and loss of Vbb protection, overvoltage protection, undervoltage and overvoltage shutdown with auto-restart and hysteresis.
The PROFET® BTS 432 F2 is a smart high‑side power switch designed for 12 V and 24 V DC grounded loads, especially inductive loads. It integrates a vertical N‑channel power FET with a charge pump, CMOS‑compatible input, and extensive built‑in protection functions, allowing it to replace electromechanical relays in many applications.
Key specifications include a supply voltage rating of 63 V, load‑dump protection up to 66.5 V, a continuous power dissipation of 125 W, and an operating temperature range from –40 °C to +150 °C. The device also offers short‑circuit current limiting (up to 21 A), on‑state resistance as low as 30 mΩ, and a full set of diagnostic feedback signals.
| Supply voltage (overvoltage protection) | 63 V |
|---|---|
| Power dissipation (DC) | 125 W |
| Operating temperature range | -40 °C … +150 °C |
| On‑state resistance (Ron) at 25 °C | 30 mΩ – 38 mΩ |
| Short‑circuit current limit (IL(SCp)) | 21 A |
The device is rated for a supply voltage of up to 63 V (over‑voltage protection).
The on‑state resistance (Ron) is between 30 mΩ and 38 mΩ at 25 °C.
It can operate from –40 °C up to +150 °C.
