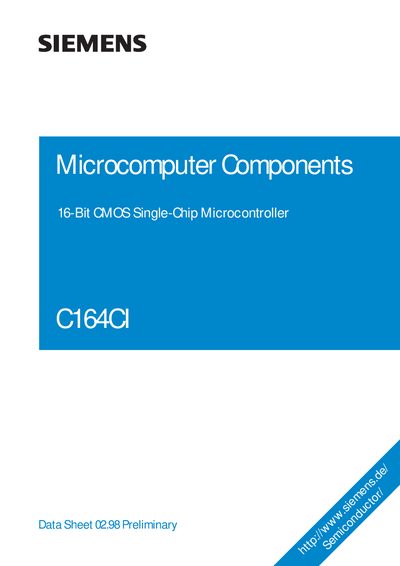

C164CI is the datasheet of Siemens 16-bit CMOS single-chip microcontroller
The C164Cl is a low‑cost 16‑bit CMOS microcontroller offering high CPU performance (up to 8 MIPS) and a rich set of peripherals, including an 8‑channel 10‑bit A/D converter, CAN interface, multiple timers, capture/compare units and flexible power‑management modes. It provides up to 4 MByte linear address space, 2 KB internal RAM, 64 KB OTP/ROM and supports both on‑chip PLL clock generation and external clock sources.
The device is supplied in an 80‑pin MQFP package (0.65 mm pitch) and is covered by Siemens’ semiconductor group documentation. Ordering codes specify the derivative, temperature range, package and delivery type. The datasheet includes pin configurations, functional descriptions, timing diagrams and mechanical dimensions.
| Instruction cycle time | 100 ns at 20 MHz |
|---|---|
| Multiplication time | 500 ns (16 × 16 bit) |
| Division time | 1 µs (32 / 16 bit) |
| On‑chip RAM | 2 KB |
| On‑chip OTP/ROM | 64 KB |
| External data bus width | 8‑bit or 16‑bit |
| A/D converter | 8‑channel, 10‑bit, 9.7 µs conversion |
| Operating temperature range | -40 °C to 125 °C |
| CAN interface | Full‑CAN V2.0B, 15 message objects |
| Package type | 80‑pin MQFP, 0.65 mm pitch |
It is 100 ns per instruction cycle when the CPU runs at 20 MHz.
The microcontroller includes an 8‑channel, 10‑bit A/D converter.
It operates from –40 °C up to 125 °C.
It is supplied in an 80‑pin MQFP package with a 0.65 mm pitch.
