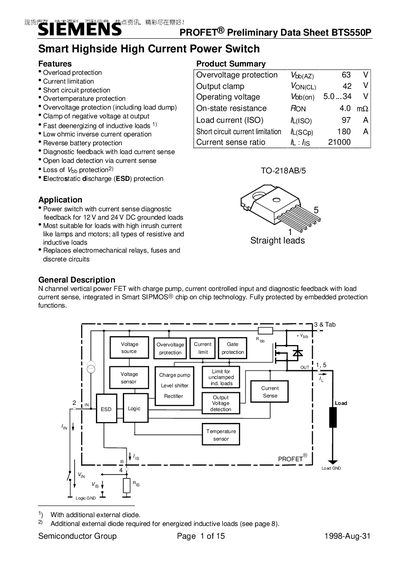

This document is a data sheet for PROFET® Preliminary Data Sheet BTS550P. The product has overload protection, current limitation, short circuit protection, overtemperature protection, overvoltage protection, negative voltage clamping, fast deenergization of inductive loads, and is suitable for 12V and 24V DC grounded loads. It can replace electromechanical relays, fuses and discrete circuits.
The BTS550P is a Smart Highside High Current Power Switch designed for 12 V and 24 V DC grounded loads with high inrush currents such as lamps and motors. It replaces electromechanical relays, fuses and discrete circuits, offering integrated current‑sense diagnostics.
Key specifications include an operating voltage range of 5.0 V‑34 V, on‑state resistance as low as 33 mΩ, continuous load current up to 97 A (ISO) and a short‑circuit current limit of 180 A. The device incorporates multiple protection functions, including overload, overtemperature, overvoltage (load‑dump), reverse‑battery, and ESD protection.
| On‑state resistance Ron | 33 mΩ – 4.0 mΩ |
|---|---|
| Continuous load current (ISO) | 97 A |
| Short‑circuit current limitation | 180 A |
| Current sense ratio | IL : Is = 21 000 |
The device can handle a continuous load current of up to 97 A (ISO rating).
The short‑circuit current is limited to 180 A.
