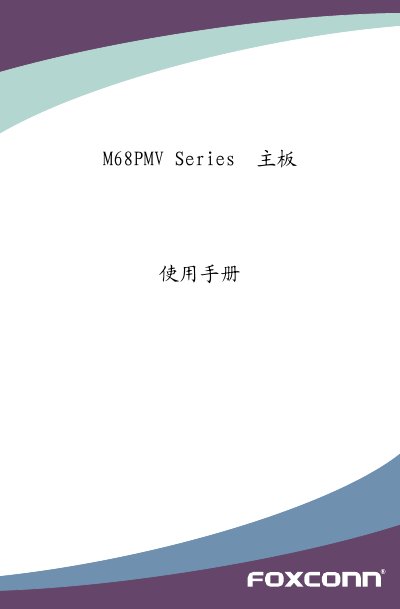

M68PMV Series Motherboard User Manual, introducing the functions and features of the motherboard, installation precautions, usage methods and maintenance and maintenance methods
This manual introduces the Foxconn M68PMV Series motherboard, covering its specifications, layout diagram, and back‑panel connectors. It also details hardware installation procedures such as CPU, memory, and expansion‑card mounting, as well as wiring and jumper settings.
The guide further explains driver installation, BIOS navigation, system monitoring, power‑management features, and security settings. Safety warnings and ESD precautions are included to help prevent damage during assembly and use. This manual is written in Chinese.
| CPU support | AMD AM3 (Phenom II), max 95 W |
|---|---|
| Memory slots | 2 × 240‑pin DDR3 DIMM, up to 8 GB |
| Chipset | MCP68 |
| SATA ports | 4 × SATA 2.0 (300 MB/s) |
| USB ports | 8 × USB 2.0 (4 rear, 4 internal) |
| Form factor | Micro ATX, 23.5 cm × 17.7 cm |
It supports AMD AM3 processors such as Phenom II with a maximum power consumption of 95 W.
The board provides eight USB 2.0 ports – four on the rear panel and four internal connectors.
It is a Micro ATX board measuring 23.5 cm by 17.7 cm.
The motherboard has two DDR3 DIMM slots that can hold up to 8 GB of system memory.
