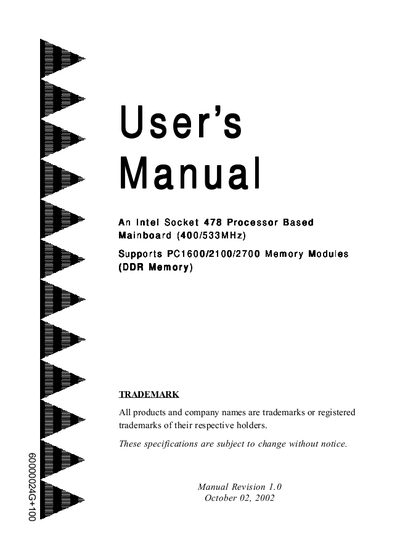

This is a user manual, which introduces the features and characteristics of Intel Socket 478 Processor Based Mainboard
This manual covers the Intel Socket 478 Processor Based Mainboard built around the Intel® 845GE chipset. It describes the board's components, chipset architecture, supported memory types, and system interfaces such as AGP 4X, Ultra ATA, USB, and LAN.
The document includes step‑by‑step installation procedures, jumper settings, BIOS configuration, and a detailed list of POST codes with troubleshooting solutions. Appendices provide additional reference material such as BIOS update instructions and optional feature guides.
| Supported Memory Types | PC1600/2100/2700 DDR SDRAM |
|---|---|
| Chipset | Intel 845GE (GMCH W82845GE, ICH4 W82801DB, FWH) |
| AGP Interface | 4X 1.5 V AGP 2.0, 400/533 MHz data transfer |
| DDR SDRAM Interface | 200/266/333 MHz, up to 2 GB |
Clear the CMOS or press the reset key to power on the system.
