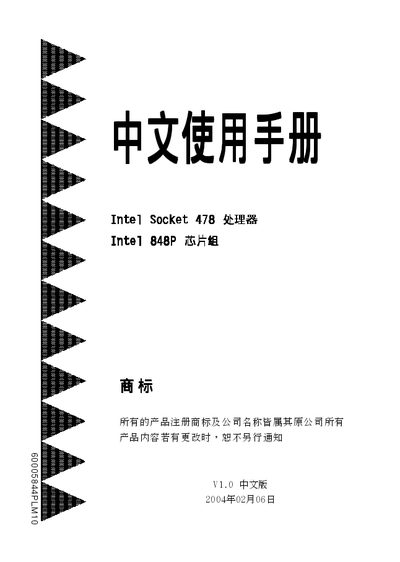

This is a user manual for the Intel 848P chipset motherboard. It mainly introduces the packaging contents, motherboard size, I/O interface, power switch, system operation block diagram, etc.
This manual covers the contents of the package, the dimensions and specifications of the Micro ATX motherboard, and detailed installation procedures for the Intel 848P chipset. It also explains BIOS settings, including ACPI S3 (Suspend To RAM) support, and provides guidance on power supply requirements and peripheral connections.
Additional sections describe the supported interfaces such as AGP 8X, ATA‑100 IDE, USB 2.0, and LAN, as well as optional software tools like Realtek Media Player and Ghost cloning utilities. This manual is written in Chinese.
| Form factor | Micro ATX |
|---|---|
| Package type | 478 pin |
| Power supply requirement | Minimum 250 W, recommended 300 W |
| BIOS power‑management feature | ACPI S3 (Suspend To RAM) |
| ATX power connectors | 20‑pin ATX and 4‑pin ATX12V |
The board requires a minimum 250 W power supply, with 300 W or higher recommended for safe operation.
It supports ACPI S3 (Suspend To RAM) functionality.
The chipset is designed for Socket 478 CPUs.
The motherboard follows the Micro ATX form factor.
