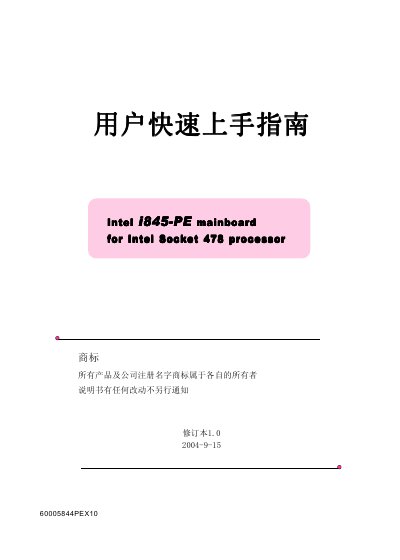

This document is a quick start guide for the Intel i845-PE motherboard, which introduces the features and characteristics of the motherboard, such as supported processors, memory, expansion slots, etc.
This manual provides detailed information for the Intel i845-PE mainboard, including supported processors, memory types, and expansion slots. It guides users through installation steps, BIOS configuration, and connector pin‑outs.
The document also lists the onboard components such as the Realtek RTL8100C LAN controller, Winbond W83627HF Super I/O, and Realtek ALC655 audio codec, as well as power specifications and form‑factor dimensions.
| Supported CPUs | Pentium 4, Celeron 4 |
|---|---|
| Front‑Side Bus | 400 MHz / 533 MHz |
| Memory types | DDR 200/266/333 |
| BIOS | Award BIOS, ACPI v2.0, SMBIOS v2.2 |
| LAN controller | Realtek RTL8100C 10/100 Mbps |
| Audio codec | Realtek ALC655 AC'97 |
| Form factor | ATX (305 mm × 210 mm) |
A Realtek RTL8100C 10/100 Mbps Ethernet controller is integrated.
It includes a Realtek ALC655 AC'97 audio codec.
