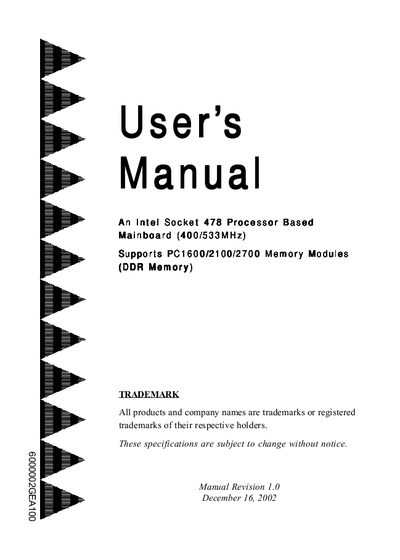

This document is a user manual for an Intel Soc Socket 478 processor-based mainboard. It mainly describes the supported processors and memory modules, as well as their features and characteristics.
This manual provides an overview of the Intel 845GE‑based mainboard, its supported memory modules, AGP 4X interface and chipset components. It includes a checklist of package contents, detailed installation steps for the CPU, memory, and connectors, as well as jumper settings and power‑on functions.
The document also contains a POST code FAQ, BIOS setup instructions, driver installation guidance, and several appendices with detailed hardware initialization routines and optional features. It serves both end‑users and technicians who need to configure or troubleshoot the board.
| Chipset | Intel 845GE |
|---|---|
| Supported Memory | PC1600/2100/2700 DDR modules |
| Front‑Side Bus Speed | 400 MHz / 533 MHz |
| AGP Interface | AGP 4X, 2.0 specification |
| ATA Interface | Ultra ATA/66/100 |
| USB Support | USB 2.0 host controller |
