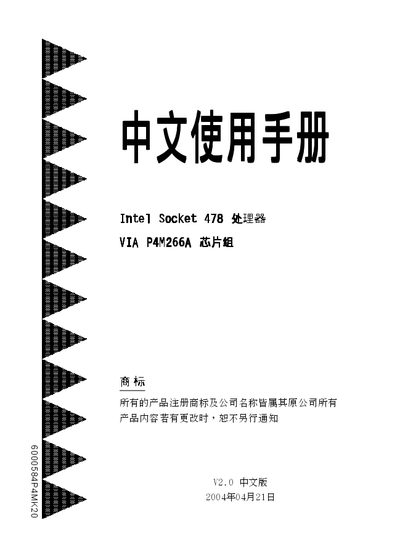

This manual introduces the features and characteristics of the VIA P4M266A chipset motherboard, including installation, BIOS settings, driver installation, etc.
This manual provides detailed information for the Intel Socket 478 motherboard, including hardware specifications, supported CPUs, memory limits, and integrated components such as graphics, audio, and Ethernet. It also outlines the packaging contents and the layout of the board.
The document guides users through installation steps, BIOS configuration, and the BIOS update process, with sections on ports, USB connections, and troubleshooting. All instructions are presented in Chinese and target end‑users and system builders. This manual is written in Chinese.
| CPU Socket | Socket 478 (Intel Pentium 4 / Celeron) |
|---|---|
| Integrated Graphics | VIA ProSavage 8 core |
| Memory Type | DDR‑200/266 DIMM |
| Maximum Memory | 2 GB |
| IDE Interface | ATA‑133 (2 ports) |
| USB Ports | 4 × USB 2.0 |
| Audio Codec | C‑Media CMI9739A AC’97 (6‑channel) |
It supports Socket 478 for Intel Pentium 4 and Celeron processors.
The board can accommodate up to 2 GB of DDR‑200/266 DIMM memory.
A C‑Media CMI9739A AC’97 codec providing up to six‑channel audio is built in.
Four USB 2.0 ports are provided on the motherboard.
