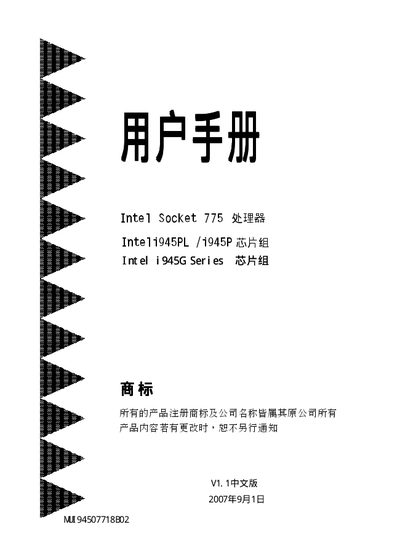

Intel Socket 775 CPU Intel i945PL/i945P/i945G Series Chipsets motherboard user manual

This document describes the features and characteristics of Intel Socket 775 processors and Inteli945PL/i945P chipsets.

Brand: Intel
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 40
File format: PDF
File size: 12.2 MB
Published: 05 April, 2012
Updated: 28 September, 2023
Models: I945PL, I945P
MD5 checksum: 3E4717D9EB6DCD7E3093EA46038EF26D
PDF: Intel Socket 775 CPU Intel i945PL/i945P/i945G Series Chipsets motherboard user manual PDF

About this manual

This manual provides an overview of Intel motherboards built around the Socket 775 platform and the i945PL, i945P, and i945G chipsets. It includes details on supported CPUs, memory configurations, expansion slots, and integrated peripherals.

The document guides users through hardware installation, BIOS configuration, firmware updates, and common troubleshooting steps, with appendices for BIOS flashing and utility software. This manual is written in Chinese.

What's inside

Introduction
Specifications
Installation
BIOS Settings
Program Installation
Appendix

Specifications

CPU socket	LGA775
Maximum memory capacity	4 GB
USB ports	8 × USB 2.0
LAN interfaces	10/100 Mbps Ethernet, optional GbE
Gigabit Ethernet	GbE LAN (optional)
Serial ATA	Serial ATA II (300 MB/s)

Frequently asked questions

What USB version is provided on the board?

All eight USB ports are USB 2.0, offering up to 480 Mbps transfer rates.
