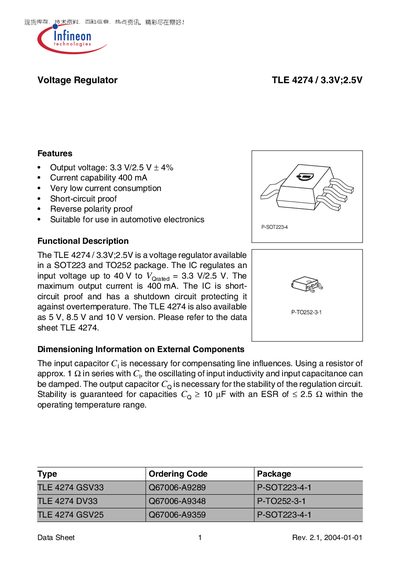

This document describes the features and characteristics of the TLE 4274 series voltage regulator, including output voltage, current capability, low power consumption, short-circuit protection, reverse polarity protection, etc. This series of products is suitable for automotive electronics.
The TLE 4274 series voltage regulator is offered in SOT‑223 and TO‑252 packages and provides selectable 3.3 V or 2.5 V output with a tolerance of ±4 %. It features very low quiescent current, short‑circuit protection, reverse‑polarity protection, and an over‑temperature shutdown circuit, making it suitable for automotive electronics.
The device operates from an input voltage range of 4.7 V to 40 V, delivers up to 400 mA continuous output current, and requires external input and output capacitors for stability. Detailed absolute‑maximum ratings, electrical characteristics, and typical performance curves are provided in the datasheet.
| Output voltage | 3.3 V / 2.5 V ±4 % |
|---|---|
| Maximum output current | 400 mA |
| Input voltage range | 4.7 V to 40 V |
| Package types | SOT‑223, TO‑252 (D‑PAK) |
| Operating temperature range | -40 °C to 150 °C |
The regulator can supply up to 400 mA of continuous output current.
It operates with an input voltage between 4.7 V and 40 V.
The device is offered in SOT‑223 and TO‑252 (D‑PAK) packages.
