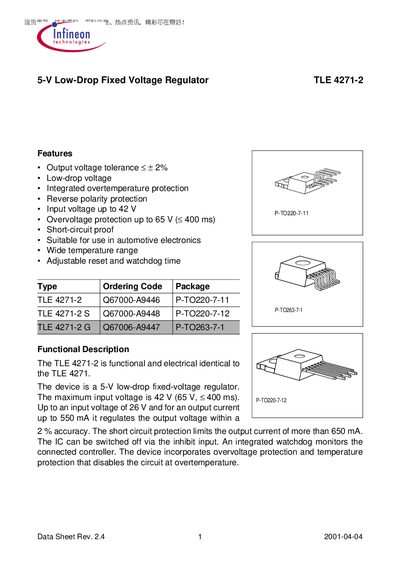

The TLE 4271-2 is a 5-V low-dropout fixed-voltage regulator with a maximum input voltage of 42 V (65 V, ≤ 400 ms).
The TLE 4271-2 is a 5‑V low‑drop fixed‑voltage regulator designed for automotive electronics. It offers an output voltage tolerance of less than ±2 %, integrated over‑temperature, reverse‑polarity, overload, short‑circuit and over‑voltage protection, and a watchdog circuit with reset output.
The device is supplied in TO‑220‑7‑11, TO‑220‑7‑12 and TO‑263‑7‑1 packages. Pin functions include input, inhibit, reset output, ground, reset‑delay, watchdog input and the 5‑V output. Detailed electrical characteristics, absolute maximum ratings, operating ranges and performance parameters such as dropout voltage, load regulation and PSRR are listed in the datasheet.
| Output voltage tolerance | < +2 % |
|---|---|
| Maximum input voltage | 42 V (65 V <400 ms) |
| Overvoltage protection | up to 65 V for <400 ms |
| Continuous output current | 550 mA |
| Short‑circuit current limit | 650 mA |
| Dropout voltage (typical) | 350‑700 mV |
| Load regulation | 25‑50 mV |
| Power supply PSRR | -54 dB @100 Hz |
| Junction temperature range | -40 °C to 150 °C |
| Storage temperature range | -50 °C to 150 °C |
The device can operate up to 42 V, and it includes over‑voltage protection up to 65 V for less than 400 ms.
It can continuously supply 550 mA, with short‑circuit protection limiting the current to more than 650 mA.
The regulator includes over‑temperature, over‑voltage, reverse‑polarity, overload, short‑circuit and watchdog protection.
It is offered in TO‑220‑7‑11, TO‑220‑7‑12 and TO‑263‑7‑1 packages.
