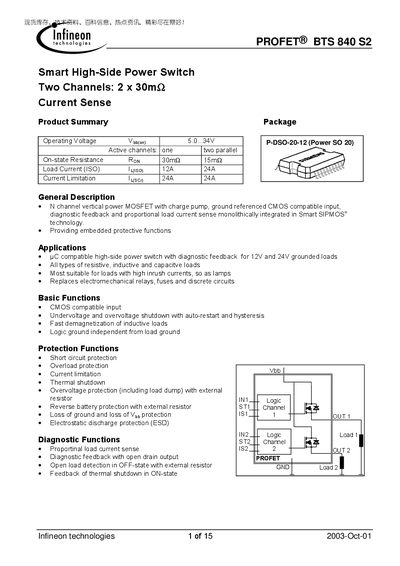

The document introduces the inventory, technical information, encyclopedia information, and hot news of Dinghao. It specifically describes the features and characteristics of the PROFET® BTS 840 S2 product, including dual channels, low resistance, high load current, and protective functions.
The BTS 840 S2 is a dual‑channel N‑channel vertical power MOSFET with integrated charge pump, diagnostic feedback and proportional load‑current sense. It is designed for uC‑compatible high‑side switching of 12 V and 24 V grounded loads, handling resistive, inductive and capacitive loads with high inrush currents.
The document details the product summary, pin definitions, maximum ratings, thermal and electrical characteristics, operating parameters, protection functions, truth table, and package information. It serves as a reference for designers integrating the device into automotive, industrial or consumer electronics applications.
