This document describes the features and characteristics of the BTS 7810 K product, including quad D-MOS switch, configurable as bridge or quad-switch, optimized for DC motor management applications, low RDS ON, maximum peak current, very low quiescent current, etc.

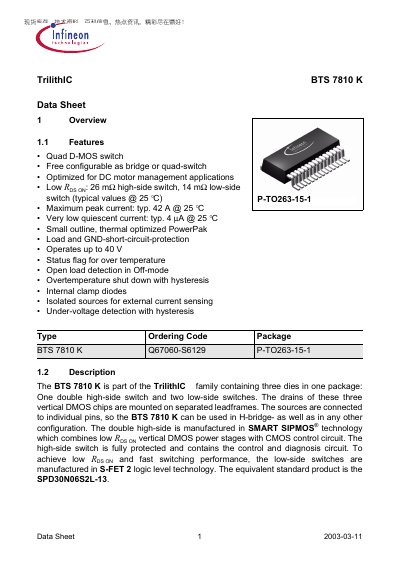

The BTS 7810 K is a quad D‑MOS switch from Infineon's TrilithIC family, configurable as a bridge or quad‑switch and optimized for DC motor management. It integrates low RDS ON high‑side and low‑side switches, status flags, and a range of protection functions.
Key specifications include a typical high‑side on‑resistance of 26 mΩ, low‑side on‑resistance of 14 mΩ, a typical peak current of 42 A, and a very low quiescent current of 4 µA. The device operates from 0.3 V to 42 V and features over‑temperature shutdown, load short‑circuit protection, open‑load detection, and undervoltage lock‑out. This manual is written in Chinese.
| High‑side RDS ON (typical) | 26 mΩ @ 25 °C |
|---|---|
| Low‑side RDS ON (typical) | 14 mΩ @ 25 °C |
| Maximum peak current (typical) | 42 A @ 25 °C |
| Quiescent current (typical) | 4 µA @ 25 °C |
| Supply voltage range | 0.3 V – 42 V |
| Over‑temperature protection | Shut‑down with hysteresis |
| Undervoltage lock‑out (UVLO) | VUVON / VUVOFF with hysteresis |
The typical high‑side on‑resistance is 26 mΩ at 25 °C.
The device can handle a typical peak current of 42 A at 25 °C.
It includes load and GND short‑circuit protection, over‑temperature shutdown with hysteresis, open‑load detection, and undervoltage lock‑out.
