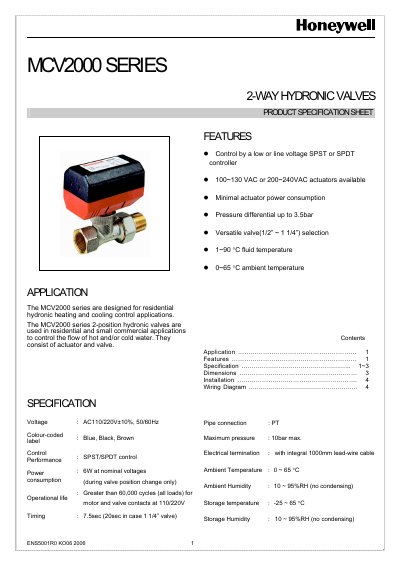

The MCV2000 series are 2-position electric valves that consist of an actuator and a valve. They are used in residential and small commercial applications to control the flow of hot or cold water.
The MCV2000 series 2‑way hydronic valves are designed for residential and small‑commercial heating and cooling systems. They feature low‑ or line‑voltage SPST or SPDT control, a pressure differential up to 3.5 bar, and valve sizes ranging from 1/2" to 1 1/4".
The manual includes detailed installation guidance, wiring diagrams for both SPST and SPDT controllers, and dimensional drawings. It also lists electrical ratings, power consumption, and operational life expectations to aid service technicians during setup and maintenance.
| Pressure differential | up to 3.5 bar |
|---|---|
| Voltage rating | AC110/220V ±10%, 50/60 Hz |
| Power consumption | 6 W at nominal voltage (during valve position change only) |
| Operational life | Greater than 60,000 cycles |
| Fluid temperature range | 1 °C to 90 °C |
| Ambient temperature range | 0 °C to 65 °C |
| Maximum pipe pressure | 10 bar |
| Valve size range | 1/2" – 1 1/4" |
Actuators are available for 100‑130 VAC or 200‑240 VAC.
The valve can handle a pressure differential of up to 3.5 bar.
The motor and valve contacts are rated for greater than 60,000 cycles at 110/220 V.
The actuator can be wired for either a 3‑wire SPST or a 3‑wire SPDT controller, as shown in the wiring diagrams.
