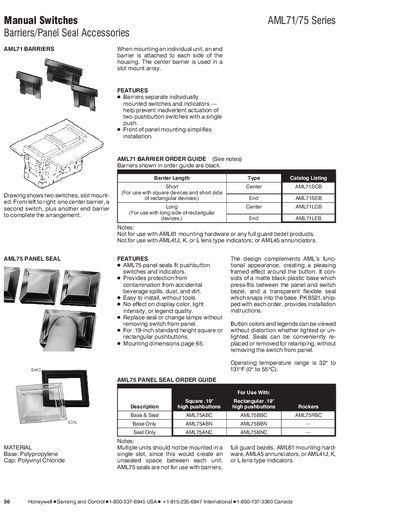

This manual introduces the barriers and panel seal accessories of AML71/75 series switches
The Honeywell AML71/75 series provides barrier and panel seal accessories for manual switches. Barriers separate individually mounted switches and indicators, while panel seals protect against spills, dust and dirt. The components are designed for 19‑inch standard height .19‑inch square or rectangular pushbuttons and feature tool‑free installation.
Additional accessories include switch guards, panel plugs, dummy housings and a connector block for AML21/AML22 switches. All parts are made from durable plastics such as polypropylene and polyvinyl chloride, and operate over a temperature range of 32 °F to 131 °F (0 °C to 55 °C).
| Base material | Polypropylene |
|---|---|
| Cap material | Polyvinyl Chloride |
| Operating temperature range | 32°F to 131°F (0°C to 55°C) |
| Standard button height | .19 inch |
The barrier base is made of polypropylene.
They operate from 32 °F to 131 °F (0 °C to 55 °C).
Yes, the seal can be replaced without removing the switch from the panel.
When the guard cover is closed, the button cannot be operated, preventing accidental actuation.
