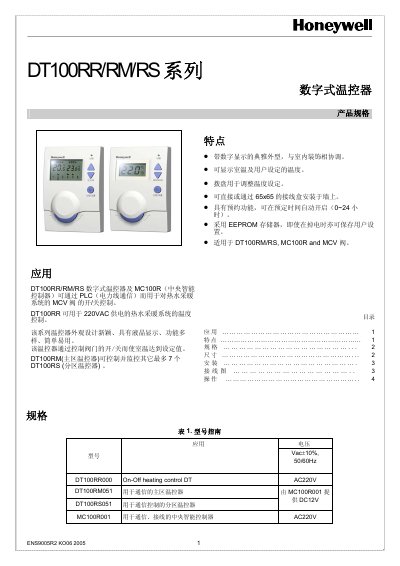

This document introduces the product specifications and applications of the ENS9005R2 KO06 2005 1 DT100RR/RM/RS series digital thermostats. The series of thermostats have a novel appearance, LCD display, multiple functions, and are easy to use. They can be used for the on/off control of the MCV valve in hot water heating systems through PLC. Suitable for temperature control of hot water heating systems powered by 220VAC.
The DT100RR/RM/RS series digital thermostats provide LCD temperature display, programmable set‑points, EEPROM memory, and optional scheduling for hot‑water heating control. The main thermostat (DT100RR) can control up to seven zone thermostats (DT100RS) and works with the MC100R central controller via PLC.
The manual covers product features, specifications, dimensions, installation guidelines, wiring diagrams, and detailed operating procedures, including temperature setting, away mode, timing functions, and relay separation settings. This manual is written in Chinese.
