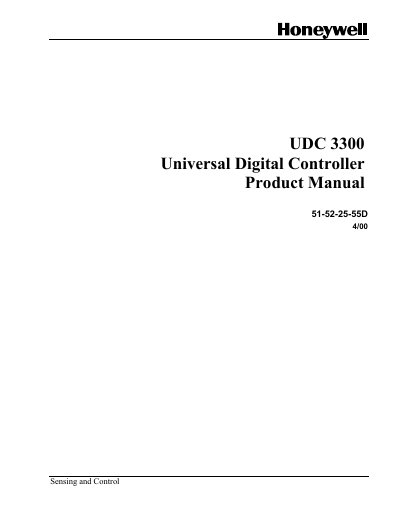

Honeywell UDC 3300 Universal Digital Controller User Manual

About this manual

This manual covers the complete lifecycle of the UDC 3300 Universal Digital Controller, including installation steps, wiring diagrams, and model number interpretation. It also details configuration prompts, tuning parameters, and set‑point programming options.

Additional sections guide users through operation procedures, input and output calibration, troubleshooting, and parts replacement. Appendices provide manual tuning techniques and reference tables for quick access. This manual is written in Chinese.

What's inside

• Overview
• Installation
• Configuration
• Operation
• Setpoint Ramp/Soak Programming Option
• Input Calibration
• Output Calibration
• Troubleshooting / Service
• Parts List
• Appendix A – Manual Tuning

Frequently asked questions

How do you power up the UDC 3300 controller?

See section 5.2 “How to Power Up the Controller” for the power‑up procedure.

How is a security code entered on the controller?

Refer to section 5.3 “Entering a Security Code” for the steps to input the security code.

How can input channels be calibrated?

Calibration procedures for inputs #1, #2, or #3 are described in section 7.5 “Input #1, #2, or #3 Calibration Procedure”.
