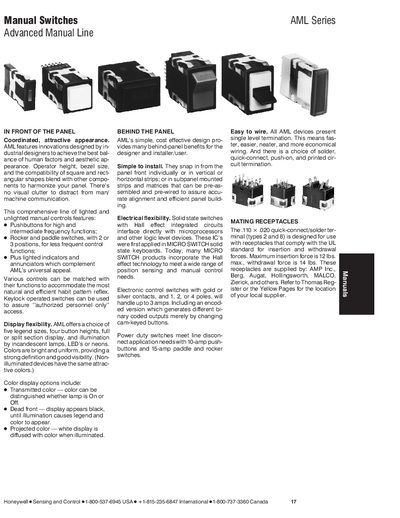

This is a manual switch instruction manual, which introduces the characteristics and features of the switch, including operating height, appearance, control function, etc.
The AML Series from Honeywell offers a comprehensive line of manual switches, including push‑buttons, rocker and paddle types, with both illuminated and non‑illuminated options. Features such as keylock switches, multiple legend sizes, and various illumination methods (incandescent, LED, neon) are designed for ergonomic panel integration and visual clarity.
The switches are designed for easy installation with snap‑in front mounting, sub‑panel strips, and a shallow 1.7 in. (43.1 mm) termination depth. Electrical flexibility includes solid‑state Hall‑effect switches, a range of voltage and current ratings, and UL, CSA, VDE, and CE certifications. Detailed mounting dimensions, panel cutout guidelines, and multi‑station mounting options are provided for efficient panel design.
| Pushbutton momentary life | 1,000,000 cycles |
|---|---|
| Power duty switch rating | 10 A push‑buttons, 15 A paddle/rocker |
| AML20 contact rating (silver) | 250 VAC, 2 A, 75 % PF |
| AML20 contact rating (gold‑plated silver) | 24 VDC, 2 A, resistive |
| Termination depth | 1.7 in. (43.1 mm) |
| Operating temperature range | 0 °C to +55 °C (+32 °F to +131 °F) |
AML20 contacts are rated at 250 VAC, 2 A with 75 % power factor for silver contacts, and 24 VDC, 2 A resistive for gold‑plated silver contacts.
All AML devices use a single‑level termination depth of 1.7 in. (43.1 mm) and can be terminated by solder, quick‑connect, push‑on, or printed‑circuit methods.
