This manual introduces the features, functions, appearance, specifications, installation, use, maintenance and other contents of the Galaxy 2 series, which can help users better use the Galaxy 2 series products.

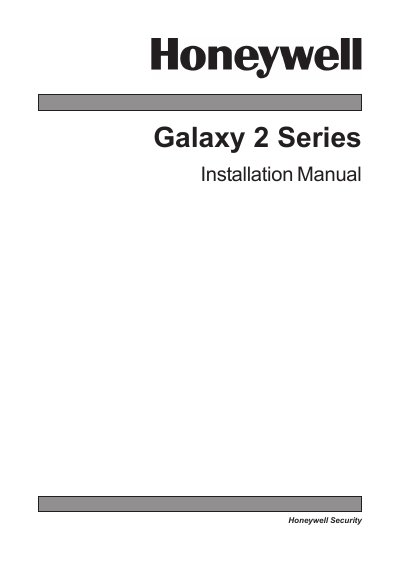

The Honeywell Galaxy 2 Series Installation Manual provides step‑by‑step instructions for installing and configuring the 12‑zone intruder alarm control panel. It covers system architecture, wiring, hardware installation, and the quick‑guide procedures for booting, default codes, and menu navigation.
Additional sections detail peripheral setup, RF and GSM modules, remote servicing, compliance information, and full specifications of electrical requirements, dimensions, and battery capacities. This manual is written in Chinese.
| Input voltage | 230 V AC (+10%/‑15%) @50 Hz |
|---|---|
| Output voltage (nominal) | 13.8 V & 14.5 V |
| Maximum ripple voltage | < 100 mV |
| Battery charge current (max) | 1.4 A |
| Physical dimensions (plastic box) | 300 mm W × 250 mm H × 100 mm D, 1.7 kg |
| Maximum zones (2‑44+ variant) | 44 zones |
The default user code is 1234 and the default engineer code is 112233.
Up to two RF receivers can be fitted to the system.
The PSU requires 230 V AC with a tolerance of +10%/‑15% at 50 Hz.
The Galaxy 2‑44+ version supports up to 44 zones.
