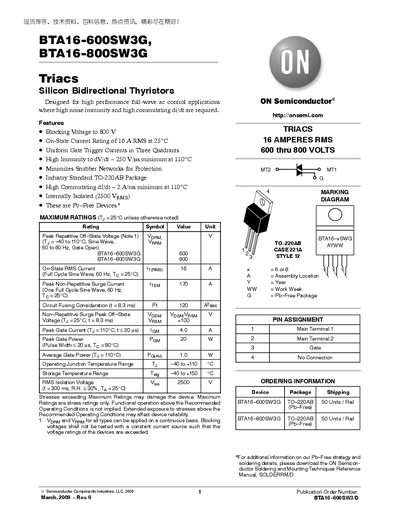

BTA16-600SW3G, BTA16-800SW3G Triacs Silicon Bidirectional Thyristors, which are designed for high performance full-wave ac control applications where high noise immunity and high commutating di/dt are required.
This datasheet provides the electrical, thermal and mechanical specifications for the BTA16-600SW3G and BTA16-800SW3G silicon bidirectional thyristors (triacs). It includes maximum ratings, characteristic curves, and typical performance graphs for both devices.
The document also lists ordering information, package dimensions for the TO‑220AB case, and contact details for ON Semiconductor technical support.
| Blocking Voltage | 800 V |
|---|---|
| On‑State RMS Current Rating | 16 A RMS at 25 °C |
| RMS Isolation Voltage | 2500 V |
| Junction‑to‑Case Thermal Resistance (AC) | 2.13 °C·W⁻¹ |
The devices are rated for a blocking voltage of 800 V.
Both triacs can handle 16 A RMS on‑state current at 25 °C.
The RMS isolation voltage is specified as 2500 V.
They are supplied in an industry‑standard TO‑220AB package.
