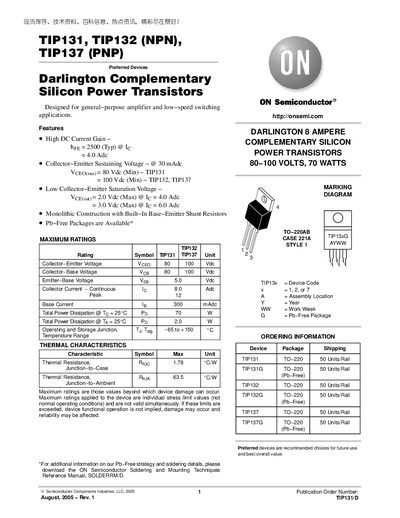

This is a technical datasheet about TIP131, TIP132 (NPN), TIP137 (PNP) Preferred Devices
This datasheet covers the ON Semiconductor TIP131 (NPN), TIP132 (NPN) and TIP137 (PNP) power transistors. It lists key electrical parameters such as collector‑emitter sustaining voltage, continuous collector current, saturation voltage and power dissipation, as well as thermal resistance values.
Package information, including TO‑220 dimensions and pin assignments, is provided along with ordering details and contact information for technical support.
| Collector‑Emitter Sustaining Voltage (Vceo) | 80 V (TIP131) / 100 V (TIP132, TIP137) |
|---|---|
| Continuous Collector Current (Ic) | 8 A |
| Total Power Dissipation | 70 W |
| Thermal Resistance, Junction‑to‑Case | 1.78 °C·W |
The TIP131 has a collector‑emitter sustaining voltage of 80 V.
The transistors are rated for a continuous collector current of 8 A.
