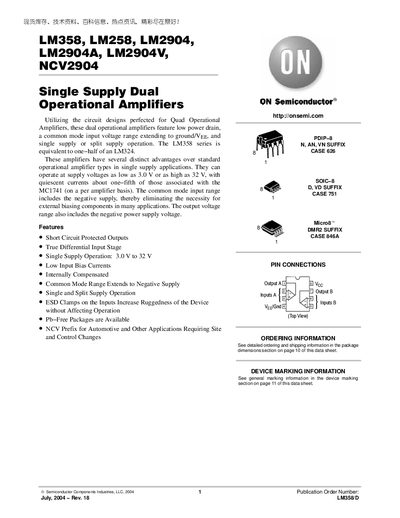

This document describes the LM358, LM258, LM2904, LM2904A, LM2904V, NCV2904 and other models of single supply dual operational amplifiers. These amplifiers feature low power drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation. They have several distinct advantages over standard operational amplifier types in single supply applications. They can operate at supply voltages as low as 3.0V or as high as 32V, with quiescent currents about one-fifth of those associated with the MC1741 (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
The LM358 series and related devices (LM258, LM2904, LM2904A, LM2904V, NCV2904) are single‑supply dual operational amplifiers with low power drain, short‑circuit protected outputs and a common‑mode range that extends to the negative supply. They operate from 3 V up to 32 V and are suitable for automotive and other applications.
The document provides maximum ratings, electrical characteristics, circuit description, pin connections, ordering information and detailed package dimensions for the PDIP‑8, SOIC‑8 and Micro8 packages. It also includes ESD protection specifications and notes on automotive qualification for the NCV2904 variant.
| Supply Voltage Range | 3.0 V to 32 V |
|---|---|
| Input Common Mode Voltage Range | -0.3 V to 32 V |
| Maximum Junction Temperature | 150 °C |
| ESD Protection (Human Body Model) | 2000 V |
| Power Supply Current (Total Device) | 15 mA |
They operate from 3.0 V up to 32 V.
The input common‑mode voltage range extends from –0.3 V to 32 V.
The devices are rated for a maximum junction temperature of 150 °C.
Yes, the NCV2904 is qualified for automotive applications.
