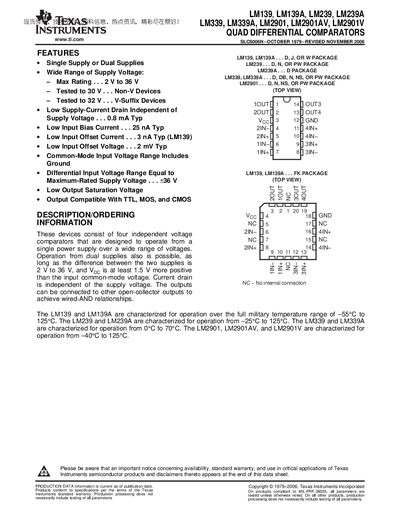

These devices consist of four independent voltage comparators that are designed for low power consumption and high performance.
The LM139, LM239, LM339, and LM2901 families are quad differential comparators that can operate from a single supply (2 V to 36 V) or dual supplies. They feature low input bias current, low offset voltage, and output compatibility with TTL, MOS, and CMOS logic.
The document includes ordering information, package drawings, absolute‑maximum ratings, detailed electrical characteristics, switching performance, mechanical dimensions, and an important notice covering warranty and liability.
| Supply Voltage Range | 2 V to 36 V |
|---|---|
| Input Bias Current | 25 nA typ |
| Input Offset Voltage | 2 mV typ |
| Supply Current | 0.8 mA typ |
| Operating Temperature Range (LM139) | -55 °C to 125 °C |
They operate from 2 V up to 36 V.
The typical input bias current is 25 nA.
The LM139 and LM139A are rated from –55 °C to 125 °C.
Yes, the outputs are compatible with TTL, MOS, and CMOS.
