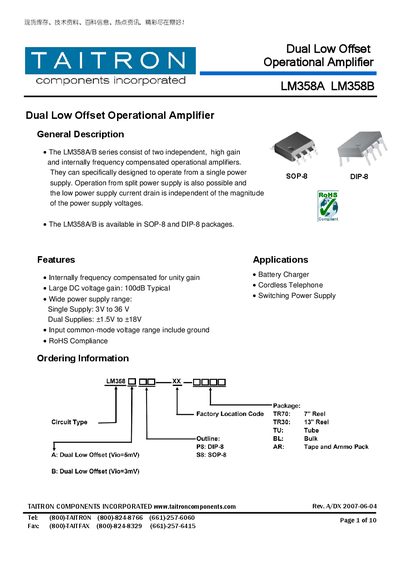

The LM358A/B is a dual low offset operational amplifier produced by Taitron Corporation. It has high gain and internal frequency compensation function. It can be specifically designed to operate from a single power supply, or from split power supply. The low power supply current drain is independent of the magnitude of the power supply voltages. The LM358A/B is available in SOP-8 and DIP-8 packages.
The LM358A/B series are dual, high‑gain, internally frequency‑compensated operational amplifiers offered in SOP‑8 and DIP‑8 packages. They operate from a single supply (3 V to 36 V) or split supplies (+1.5 V to +18 V) and feature low power consumption.
The document provides absolute maximum ratings, electrical characteristics, typical performance curves, and example circuits such as battery chargers, power amplifiers and signal filters, along with mechanical dimensions and contact information for Taitron Components.
| Supply Voltage (Single) | 3 V to 36 V |
|---|---|
| Supply Voltage (Dual) | +1.5 V to +18 V |
| Input Common‑Mode Voltage Range | Includes ground |
| Large DC Voltage Gain (typical) | 100 dB |
| Input Bias Current (typical) | 20 nA |
| Input Offset Current (typical) | 5 nA |
| Common Mode Rejection Ratio (typical) | 60 dB |
| Power Supply Rejection Ratio (typical) | 70 dB |
| Operating Temperature Range | -40 °C to +85 °C |
| Storage Temperature Range | -65 °C to +150 °C |
| Maximum Junction Temperature | 150 °C |
| Power Dissipation (SOP‑8) | 550 mW |
| Power Dissipation (DIP‑8) | 830 mW |
| Package Types | SOP‑8, DIP‑8 |
It can operate from a single supply of 3 V to 36 V or from dual supplies of +1.5 V to +18 V.
The amplifiers are offered in SOP‑8 and DIP‑8 surface‑mount packages.
The device is rated for operation from –40 °C to +85 °C.
