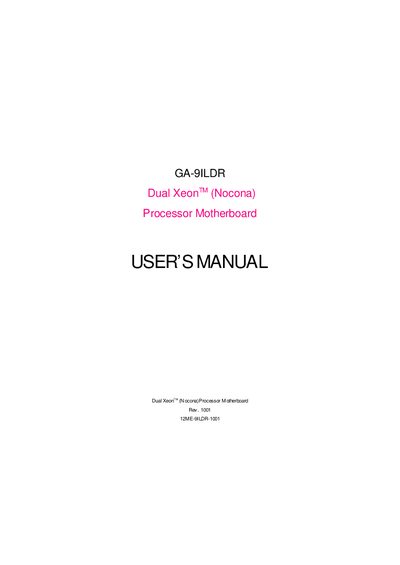

This document is the user manual for the GA-9ILDR Dual XeonTM (Nocona) Processor Motherboard. The manual provides information on the features, layout, and hardware installation process of the motherboard.
The GA-9ILDR motherboard supports dual Intel Xeon (Nocona) processors, up to 24 GB DDR‑266 memory, and a range of expansion slots. It includes integrated RAID, LAN, and SCSI controllers, and provides extensive BIOS configuration options.
The manual guides users through hardware installation, BIOS setup, driver installation, and includes a technical reference with block diagrams and an appendix of acronyms and support information.
| Form Factor | Extend ATX 30.5 cm x 33 cm |
|---|---|
| CPU Sockets | Dual socket 604 for Intel Xeon (Nocona) |
| Front Side Bus | 800 MHz |
| Chipset | Intel E7520 |
| Memory Slots | 6 × 184‑pin DDR DIMM sockets |
| Maximum Memory | 24 GB DDR‑266 |
| PCI‑X Slots | 3 (2 × 64/100 MHz, 1 × 64/133 MHz) |
| PCI‑E Slots | 2 (x4 lanes) |
| PCI Slots | 1 (32/33 MHz) |
| On‑Board LAN | Dual Broadcom BCM5721 chipset |
| SCSI Controller | LSI 1030 chipset |
| RAID Support | Mirroring (RAID 1 / RAID1E) |
| Network Boot | PXE supported |
The board provides six 184‑pin DDR DIMM sockets.
It supports mirroring, listed as RAID 1 and RAID1E.
The LAN is handled by a dual Broadcom BCM5721 chipset.
It uses an extended ATX form factor measuring 30.5 cm × 33 cm.
