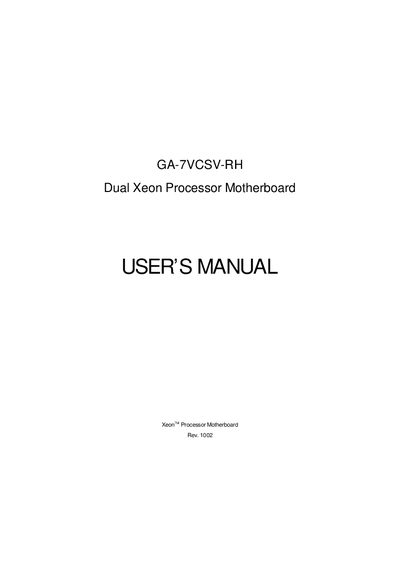

This user manual introduces the features and characteristics of the GA-7VCSV-RH motherboard, and provides guidance on hardware installation and BIOS setup.
This manual covers the hardware installation process for the GA-7VCSV-RH dual‑Xeon motherboard, including CPU and heat‑sink mounting, memory module installation, and connector wiring. Safety precautions such as unplugging the system and using a grounded wrist strap are emphasized to protect delicate components.
Additional sections describe BIOS configuration options, on‑board peripheral features, driver installation procedures for Intel, Broadcom, and XGI components, and an appendix of acronyms and technical references.
| Form Factor | 12" x 10.5" CEB |
|---|---|
| CPU Support | Dual Intel Xeon processors (LGA 771) |
| Memory Slots | 4 x 240‑pin Fully Buffered DIMM sockets, up to 16 GB |
| SATA Connectors | 6 SATA/SATAII devices supported |
| On‑Board LAN | Dual Broadcom 5789 Gigabit Ethernet controllers |
It supports six SATA/SATAII devices.
The board uses a Phoenix BIOS stored on an 8 Mb flash ROM.
Unplug the computer, use a grounded wrist strap, and handle components by the edges.
