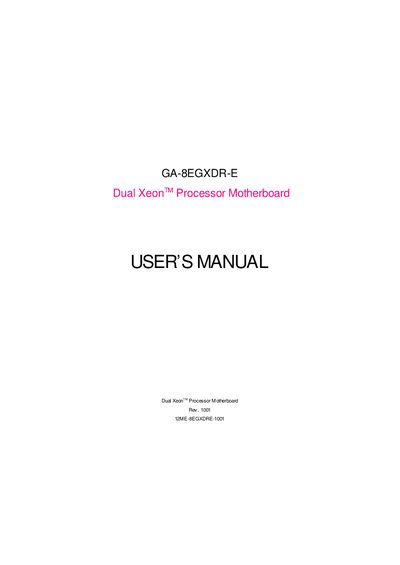

This document is the user manual of GA-8EGXDR-E(C) motherboard, introducing the features and installation and usage methods of the motherboard
This manual provides step‑by‑step instructions for installing the CPU, memory modules, expansion cards and connecting cables for the GA-8EGXDR‑E(C) Dual Xeon processor motherboard. It also includes safety precautions for handling sensitive components.
The document details BIOS configuration options, hardware specifications, and includes appendices with driver installation, BIOS update guidance and an acronym glossary.
| Form factor | 30.5 cm x 33 cm Extend ATX |
|---|---|
| CPU sockets | Dual socket 604 for Intel Xeon processors |
| Chipset | Serverworks CMIC‑SL Northbridge, Serverworks CIOB‑X2 PCI‑X Bridge, Serverworks CSB6 Southbridge |
| PCI‑X slots | 2 slots, 100 MHz |
| USB ports | 4 USB 1.1 ports (2 rear, 2 front) |
It has dual socket 604 for Intel Xeon processors.
There are four USB 1.1 ports – two on the rear and two on the front.
