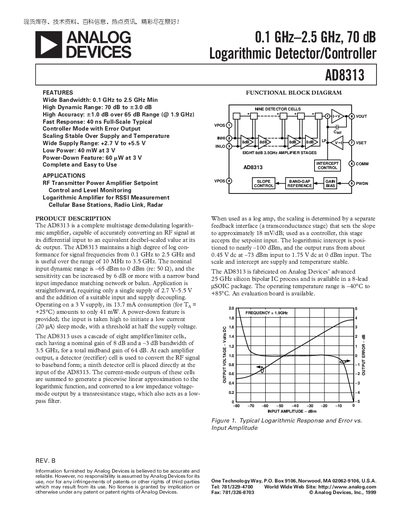

This document is the data sheet of AD8313, which introduces the features and characteristics of AD8313, application scenarios, etc.
The AD8313 is a multistage logarithmic detector/amplifier covering 0.1 GHz to 2.5 GHz with a high dynamic range of 70 dB. It operates from a single supply of +2.7 V to +5.5 V, consumes only 40 mW at 3 V, and includes a power‑down mode drawing 60 pW.
The device provides a voltage output that varies from about 0.45 V at –73 dBm input to 1.75 V at 0 dBm, and can be used both as a log‑amp and as a controller with a set‑point input. It is specified for –40 °C to +85 °C operation and is available in an 8‑lead SOIC package.
| Frequency range | 0.1 GHz – 2.5 GHz |
|---|---|
| Dynamic range (+3 dB) | 70 dB |
| Supply voltage | +2.7 V to +5.5 V |
| Power consumption (typical) | 40 mW at 3 V |
| Power‑down current | 60 pW at 3 V |
| Operating temperature range | –40 °C to +85 °C |
It operates from 0.1 GHz to 2.5 GHz.
The device works with a supply between +2.7 V and +5.5 V.
Typical consumption is 40 mW at a 3 V supply.
In power‑down mode it draws only 60 pW at 3 V.
