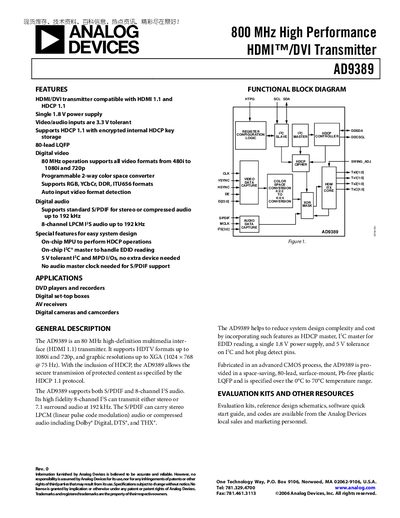

800 MHz High Performance HDMI™/DVI Transmitter AD9389 Rev. 0 is a HDMI/DVI transmitter from Analog Devices that supports HDMI 1.1 and HDCP 1.1. The transmitter uses a single 1.8 V power supply, video/audio inputs are 3.3 V tolerant, supports HDCP 1.1, and has an encrypted internal HDCP key storage. It is packaged in an 80-lead LQFP.
The AD9389 is an 80‑lead LQFP HDMI/DVI transmitter that operates from a single 1.8 V supply and includes on‑chip HDCP and I²C masters for EDID handling. It supports video formats from 480i up to 1080i/720p and provides both S/PDIF and 8‑channel LPCM audio up to 192 kHz.
Typical applications include DVD players, set‑top boxes, AV receivers, digital cameras and camcorders. Evaluation kits, reference schematics and software resources are available from Analog Devices sales representatives.
It supports all video formats from 480i up to 1080i and 720p.
Yes, it includes an on‑chip HDCP master for HDMI 1.1.
It supports standard S/PDIF stereo or compressed audio and 8‑channel LPCM up to 192 kHz.
