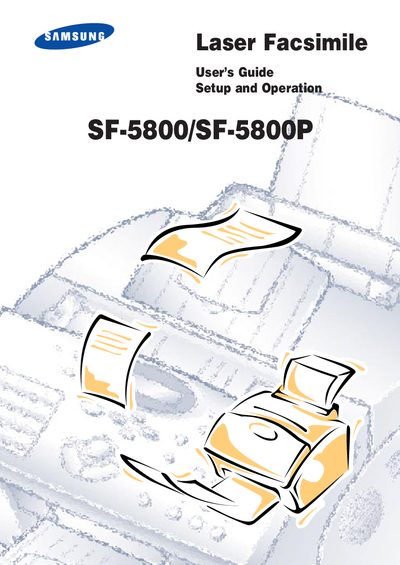

This document is a user's guide for the Laser Facsimile machine, providing instructions for setup and operation. The document includes information on unpacking, control locations and functions, choosing a location, setting up the machine, installing the image cartridge, loading paper, and more.
This guide covers unpacking, installation, and configuration of the SF-5800/SF-5800P facsimile, including control locations, paper handling, and system setup such as language selection, date/time, and network settings. Detailed chapters walk you through sending and receiving faxes, using the automatic and manual feeders, and accessing advanced features like one‑touch dialing and group dialing.
Additional sections address troubleshooting common issues, cleaning and replacing the image cartridge, power‑saving functions, and full technical specifications. The manual also includes regulatory information and safety statements for proper use.
| Modem speed | 14400/12000/9600/7200/4800/2400 bps |
|---|---|
| Memory | SF-5800 1 MByte / SF-5800P 2 MByte |
| Dimensions (H × W × D) | 238 × 355 × 415 mm |
| Power consumption (standby) | 13 W |
| Scanning method | Sheet‑fed Contact Image Sensor (CIS) |
| Scanning resolution | 300 dpi |
| Paper capacity (automatic feeder) | 30 pages (75 g/m²) |
The machine measures 238 mm high, 355 mm wide, and 415 mm deep.
The SF‑5800 has 1 MByte of memory, while the SF‑5800P has 2 MByte.
