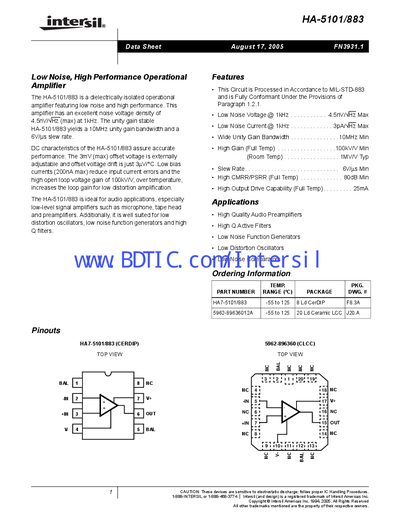

The HA-5101/883 is a low noise, high performance operational amplifier. It features an excellent noise voltage density of 4.5nV/√Hz (max) at 1kHz. The unity gain stable HA-5101/883 yields a 10MHz unity gain bandwidth and a 6V/µs slew rate. The HA-5101/883's DC characteristics assure accurate performance. The 3mV (max) offset voltage is externally adjustable and offset voltage drift is just 3µV/°C. Low bias currents (200nA max) reduce input current errors and the high open loop voltage gain of 100kV/V, over temperature, increases the loop gain for low distortion amplification. The HA-5101/883 is ideal for audio applications, especially low-level signal amplifiers such as microphone, tape head and preamplifiers. Additionally, it is well suited for low distortion oscillators, low noise function generators and high Q filters.
The HA‑5101/883 is a dielectrically isolated operational amplifier with low noise (4.5 nV/√Hz) and high performance, offering a 10 MHz unity‑gain bandwidth and a 6 V/µs slew rate. It features adjustable offset voltage, low bias current, high open‑loop gain, and robust output‑drive capability.
Designed for audio preamplifiers, low‑distortion oscillators, function generators and high‑Q filters, it is supplied in ceramic DIP and LCC packages and operates from +5 V to +15 V over –55 °C to +125 °C. The datasheet includes absolute‑maximum ratings, detailed electrical characteristics, die dimensions and application notes.
| Noise Voltage Density | 4.5 nV/√Hz (max) at 1 kHz |
|---|---|
| Unity‑Gain Bandwidth | 10 MHz |
| Slew Rate | 6 V/µs (min) |
| Input Offset Voltage | 3 mV (max) |
| Input Bias Current | 200 nA (max) |
| High Output Drive | 25 mA |
| CMRR / PSRR | 80 dB (min) |
| Supply Voltage Range | +5 V to +15 V |
| Operating Temperature Range | -55 °C to +125 °C |
| Package Types | Ceramic DIP, Ceramic LCC |
The device is rated for a maximum differential input voltage of 40 V.
The HA‑5101/883 operates from +5 V to +15 V.
It can drive up to 25 mA of output current.
The typical noise voltage density is 4.5 nV/√Hz.
