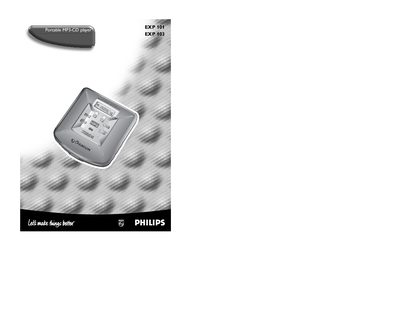

Instruction manual
The Philips EXP 101/103 is a portable MP3‑CD player that supports audio CDs, CD‑ROMs, CD‑R/RWs and MP3‑CDs. It offers features such as dynamic bass boost, shuffle, repeat modes, and programmable track lists up to 30 tracks.
The manual explains how to install batteries, connect the optional car voltage converter, use the headphone/remote socket, and troubleshoot common issues such as power problems, playback errors, and lens condensation.
| Battery type | Alkaline (LR6, UM3, AA) |
|---|---|
| Battery life – CD (normal) | 6 hours |
| Battery life – CD (alkaline) | 14 hours |
| Power adapter | 4.5 V / 300 mA DC |
| Line‑out socket | 3.5 mm |
| Headphone socket | 3.5 mm |
| Car voltage converter | 4.5 V DC |
With alkaline batteries the player can run for about 14 hours, and with normal batteries for about 6 hours.
Use the AY 3545 car adapter, connect the voltage converter’s DC plug to the player’s 4.5 V DC socket, then insert the converter into the cigarette lighter socket.
The player uses alkaline batteries (type LR6, UM3 or AA).
Slide the HOLD switch to the ON position; the display shows “HOLD” and all buttons are locked.
