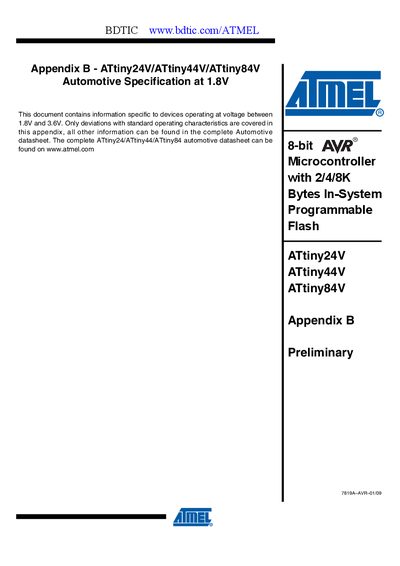

This document is the ATtiny24V/ATtiny44V/ATtiny84V 1.8V Automotive Specification, which describes the features and characteristics of the products in this series operating at voltages between 1.8V and 3.6V.
This datasheet appendix provides the automotive‑specific specifications for the ATtiny84V 8‑bit AVR microcontroller, covering operating voltage ranges, temperature limits, and electrical characteristics. It also includes ordering and package information for the device.
Key sections include electrical characteristics, ADC performance, maximum speed versus VCC, ordering codes, and mechanical drawings for the TU (SOIC) and PN (QFN) packages. Contact details for Atmel support and legal disclaimer are listed at the end of the document.
| Operating temperature | -40 to +85 °C |
|---|---|
| Storage temperature | -65 to +175 °C |
| Maximum operating voltage | 6.0 V |
| DC current per I/O pin | 30 mA |
| DC current VCC and GND pins | 200 mA |
| ADC resolution (single‑ended) | 10 bits |
| Flash memory (ATtiny84V) | 8 KB |
The device operates from –40 °C to +85 °C.
The maximum voltage the device can tolerate is 6.0 V.
The ATtiny84V is available with 8 KB of flash memory.
