AD9398 is a HDMI™ Display Interface product from Analog Devices. It supports HDMI 1.1, DVI 1.0 standards, can convert RGB signals to YCbCr signals, and supports high bandwidth digital content protection. It is suitable for advanced TVs, HDTVs, projectors, LCD monitors and other devices.
The AD9398 is a single‑chip HDMI receiver that supports HDMI 1.1 and DVI 1.0, includes HDCP 1.1 protection, and handles video formats up to 1080p. It is supplied in a 100‑lead Pb‑free LQFP package and operates from 0 °C to 70 °C.

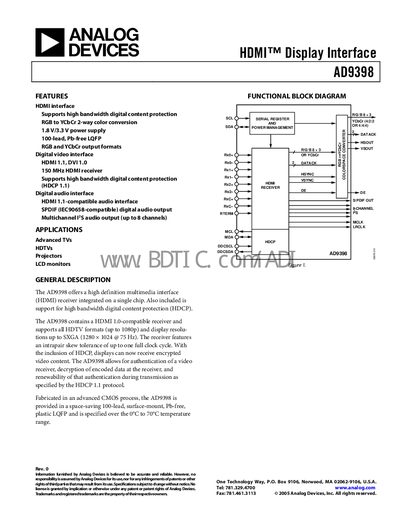

The document provides detailed electrical characteristics, absolute maximum ratings, pin configuration, power‑supply recommendations, and serial‑port programming information for designers integrating the device into HDTVs, projectors, and LCD monitors.
| Supply Voltage Vop | 3.3 V (typical) |
|---|---|
| Maximum HDMI Receiver Clock | 150 MHz |
The AD9398 supports a maximum HDMI receiver clock of 150 MHz.
It supports HDMI 1.1 and DVI 1.0 interfaces.
The device operates from –25 °C to +85 °C.
The AD9398 requires a 3.3 V analog supply (Vop) and 1.8 V digital supplies (DVpp, PVpp).
