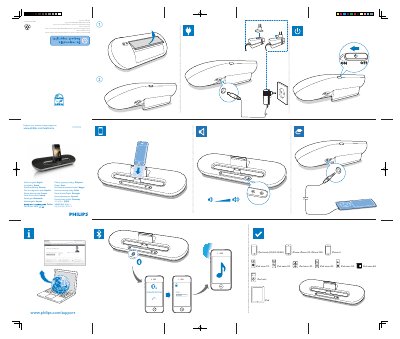

The document is a quick start guide for the Philips DS7700 speaker product, describing its features and characteristics.
The Philips DS7700 Quick Start Guide provides essential information for setting up and using the docking speaker. It includes safety instructions, power requirements, and connection options for iPod and iPhone devices.
Technical data such as output power, signal‑to‑noise ratio, dimensions and power consumption are listed, along with details of the supplied AC adapter and recommended operating conditions.
| Rated Output Power | 14 W RMS |
|---|---|
| Signal‑to‑Noise Ratio | 65 dB |
| AUX IN | 0.8 V RMS, 10 kΩ |
| Input Voltage | 100–240 V~ 50/60 Hz, 1.5 A |
| Output Voltage / Current | 10 V / 3.5 A |
| Operating Power Consumption | <35 W |
| Eco Standby Power Consumption | <1 W |
| Dimensions (Main Unit) | 310 mm × 110 mm × 40 mm |
| Weight (Main Unit) | 0.76 kg |
The DS7700 delivers a rated output power of 14 W RMS.
It requires an AC input of 100–240 V~ at 50/60 Hz, drawing up to 1.5 A, and provides a 10 V / 3.5 A output.
In Eco standby mode the speaker consumes less than 1 W of power.
The main unit measures 310 mm × 110 mm × 40 mm (W × H × D).
