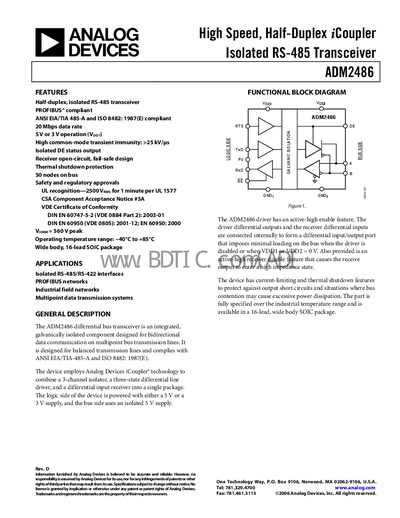

This document describes the features and characteristics of the high-speed half-duplex iCoupler isolated RS-485 transceiver ADM2486 Rev. D.
The ADM2486 is an isolated RS‑485/RS‑422 transceiver that combines a three‑channel isolator, a three‑state differential driver, and a differential receiver in a single 16‑lead SOIC package. It supports 5 V or 3 V operation, provides high common‑mode transient immunity (>25 kV/ps), and includes current‑limiting and thermal shutdown protection.
Designed for industrial field networks such as PROFIBUS, the device meets multiple safety standards (UL, CSA, VDE, DIN EN) and operates over a temperature range of –40 °C to +85 °C, making it suitable for robust multipoint data transmission systems.
| Maximum Data Rate | 20 Mbps |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Rated Dielectric Insulation Voltage | 2500 Vrms (1‑minute) |
| Common‑Mode Transient Immunity | >25 kV/ps |
| Package | Wide body, 16‑lead SOIC |
| Supply Voltage | 5 V or 3 V operation |
The device supports a maximum data rate of 20 Mbps.
It is rated for 2500 Vrms dielectric insulation voltage for a 1‑minute duration.
The transceiver operates from –40 °C up to +85 °C.
It has UL recognition under UL 1577, CSA approval, and VDE certification.
