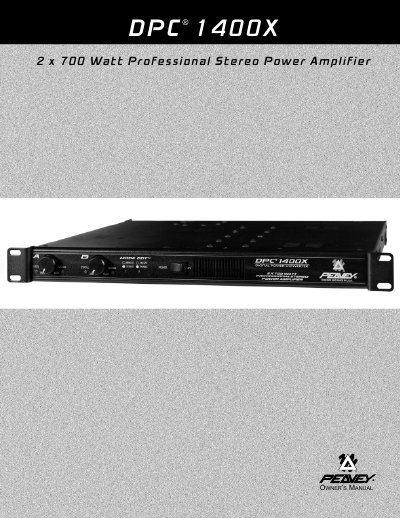

The DPC® 1400X 2 x 700 Watt Professional Stereo Power Amplifier features high power output and excellent audio performance, making it suitable for professional audio applications.
This manual covers safety precautions for the DPC 1400X, including warnings about dangerous voltage, proper fuse replacement, and protection against moisture. It describes the front‑panel LEDs, input sensitivity controls, mode and DDT switches, and the cooling system that keeps the rack‑mount unit operating reliably.
Installation guidance explains rack mounting, power connections, and speaker wiring for both stereo and bridge modes. The document also lists the amplifier’s electrical specifications, dimensions, and weight, and provides troubleshooting tips for overheating, clipping, and fuse failures.
| Typical Output Power (Stereo, 2 Ω) | 1,000 W |
|---|---|
| Rated Output Power (Stereo, 2 Ω) | 700 W RMS per channel |
| Total Harmonic Distortion | < 0.1 % |
| Input Sensitivity | 1.4 V RMS (+3 dBV) |
| Input Impedance | 10 kΩ unbalanced |
| Frequency Response | 3 Hz – 25 kHz |
| Power Consumption | 10 A @ 120 V AC |
| Dimensions (H × W × D) | 1.75" × 19" × 16.5" |
| Weight | 15 lb (6.8 kg) |
A red LED means the amplifier is overheated and will shut down for about five minutes or until it cools enough to operate safely.
