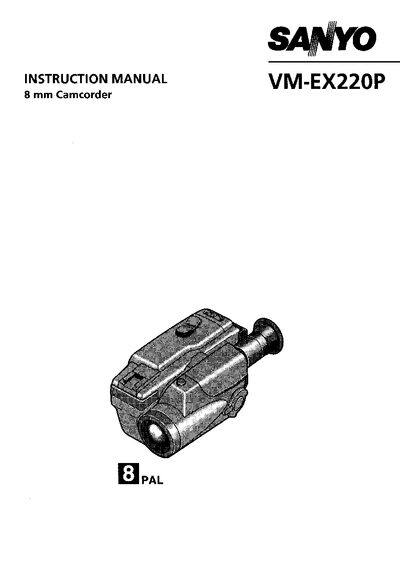

This manual covers all essential information for using the SANYO VM-EX220P 8 mm camcorder, including safety warnings, power source options, cassette handling, recording procedures, and playback functions. Detailed diagrams and step‑by‑step instructions help users operate the device correctly and avoid damage.
The document also lists the technical specifications of the camcorder, such as video system, lens zoom, sensor type, and power requirements, allowing users to understand the performance capabilities and proper operating conditions.
| Television system | PAL, CCIR |
|---|---|
| Video recording system | Rotating 2‑head, helical‑scan system |
| Cassette type | 8 mm video cassette tape |
| Maximum recording time | 90 minutes (P5‑90 cassette) SP mode |
| Lens | 10× power zoom F1.6 (f=4.5 to 45 mm) |
Align the marks on the battery pack with the AC adaptor, plug the adaptor into an outlet, and watch the charge indicator; it turns off when fully charged.
It flashes in the viewfinder when condensation is detected inside the camcorder or cassette, indicating you should wait for it to dry before using the unit.
