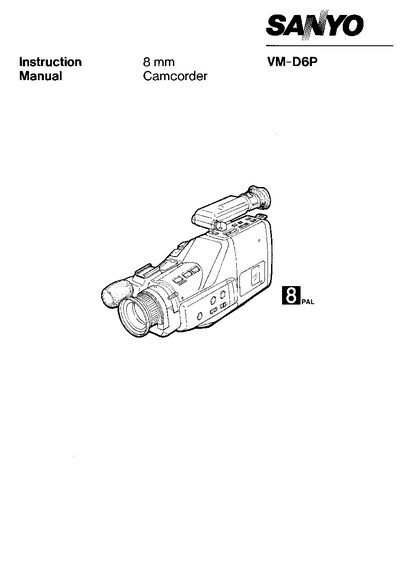

This manual covers the features, accessories, and preparation steps for the Sanyo VM-D6P camcorder, including battery installation, power options, and basic handling. Detailed sections explain how to attach and charge the battery pack, connect the AC adaptor, and use the optional accessories such as lenses and microphones.
Operational instructions describe loading and ejecting 8mm video cassettes, using recording functions like zoom, macro focus, high‑speed shutter, and automatic white balance, as well as playback and editing features. The specification sheet lists technical data such as power consumption, tape speed, dimensions, and weight, and the warranty section outlines service terms for the United Kingdom and Ireland.
| Television system | PAL, CCIR |
|---|---|
| Battery holder input voltage | 6V/7.5V/9V |
| Power consumption (recording) | 6.5 W |
| SP tape speed | 20.051 mm/sec |
| LP tape speed | 10.025 mm/sec |
| Maximum recording time (P5‑90 cassette) | 180 minutes |
| Fast forward/rewind time (P5‑90 cassette) | ≈ 8 minutes |
| Pickup element | CCD solid‑state type |
| Viewfinder | Electronic 0.7‑inch black‑and‑white |
| Lens zoom | 8× electro‑powered |
| External dimensions (W × H × D) | 18 mm × 152 mm × 302 mm |
The camcorder can record up to 180 minutes on a P5‑90 cassette.
