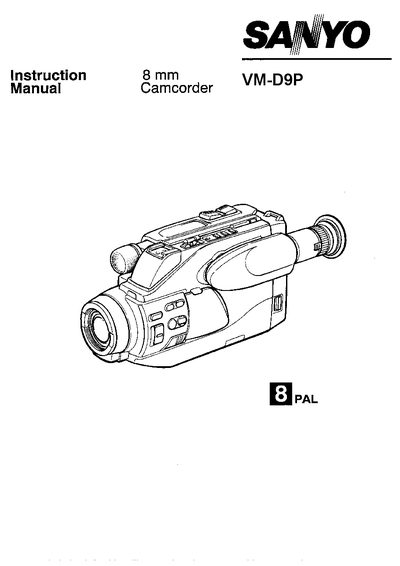

This manual covers all aspects of using the Sanyo VM-D9P 8 mm camcorder, including parts identification, viewfinder indicators, remote‑control operation, basic filming techniques, and preset recording modes. Detailed preparation steps explain how to install the lithium battery, adjust the grip belt, and clean the viewfinder.
Additional sections provide troubleshooting tips, safety precautions, full technical specifications, and the company’s guarantee terms. The guide is organized with clear headings and illustrated diagrams to help users operate the camcorder safely and effectively.
| Video cassette format | 8 mm video cassette tape |
|---|---|
| Standard Play (SP) speed | 20.0 mm/sec |
| Long Play (LP) speed | 10.0 mm/sec |
| Maximum recording time (SP) | 90 minutes (P5‑90 cassette) |
| Image sensor | CCD solid‑state, 320,000 pixels |
| Lens | 8× optical zoom, f=6 mm–48 mm, F1.8 |
| Power consumption (recording) | 5.6 W |
| Operating temperature range | 0 °C – 40 °C (32 °F – 104 °F) |
| Dimensions (W × H × D) | 1116 × 118 × 259 mm |
| Weight | 1770 g (1.70 lb) |
| Video output | 1 Vp‑p, 75 Ω unbalanced, negative sync |
| Audio output | ‑7 dB, ≤2.2 kΩ |
| DC input voltage | 6 V (battery) / 6.5 V (AC adaptor) |
Use only a Sanyo CR2025 3 V lithium battery, insert it with the (+) side up, and do not short‑circuit the terminals. Dispose of the old battery promptly.
Insert two AA 1.5 V batteries, aim the remote at the camcorder’s infrared sensor within about 5 m and 30°, then press the desired button. The remote works only when the camcorder is in CAMERA or PLAYER mode and the stand‑by switch is set to READY.
Under normal conditions the lithium battery lasts about one year; when it expires the date display shows “88:88”.
