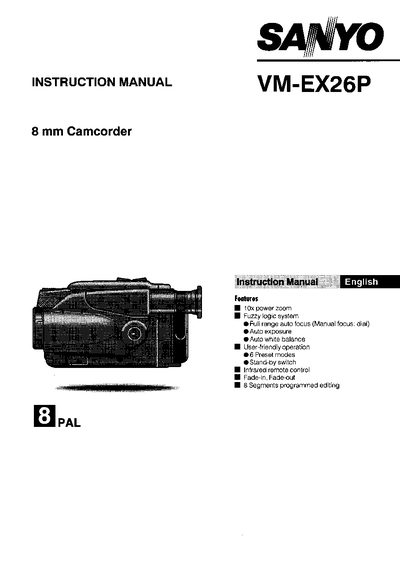

This manual covers all aspects of using the Sanyo VM-EX26P 8 mm camcorder, including safety precautions, preparation, battery installation, cassette handling, and basic recording steps. Detailed descriptions of the control panel, remote control, and accessory connections are provided.
The document also includes a troubleshooting guide for common problems such as power issues, condensation, focus errors, and remote‑control operation, plus a full specifications table that lists video system, lens, power consumption, dimensions, and environmental limits.
| Video recording system | Rotating 2-head, helical‑scan system |
|---|---|
| Audio recording system | Rotating head, FM system |
| Cassette type | mm video cassette tape |
| Tape speed | approx. 20.051 mm/sec |
| Maximum recording time | 90 minutes (P5‑90 cassette) SP mode |
| Lens | 10× power zoom F1.8 (f=5.8 to 58 mm) |
| Focus | Fuzzy logic auto focus |
| White balance | Full auto fuzzy logic |
| Iris | Fuzzy logic auto iris |
| Minimum subject illumination | 2 lux (Low Light mode) |
| Subject illumination range | 2 to 100,000 lux |
| Power supply | 6 V battery pack, 6.5 V AC adaptor/charger |
| Power consumption | 5.4 W during camera recording |
| Operating temperature range | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage temperature range | -20 °C to 60 °C (-4 °F to 140 °F) |
| Dimensions (W×H×D) | 119 × 111 × 205 mm |
| Weight | ≈ 780 g (excluding battery pack and tape) |
| Microphone | Electret condenser type, omnidirectional |
| Video output terminal | 1 Vp‑p, 75 Ω unbalanced, negative sync |
| Audio output terminal | -7 dB, ≤ 2.2 kΩ |
