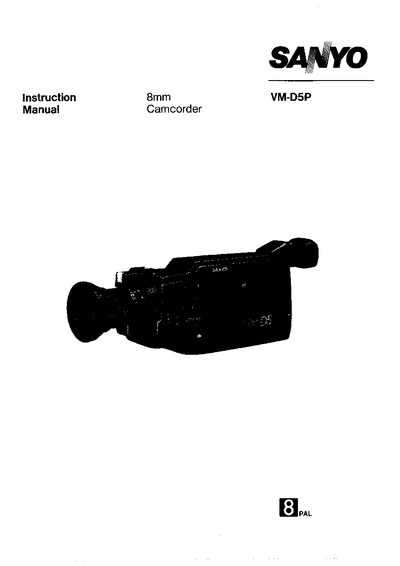

This manual describes the features and operation of the Sanyo VM-D5P 8 mm camcorder, including automatic focus, white balance, high‑speed shutter, zoom, and playback functions. It also lists the accessories supplied with the unit and explains basic shooting techniques such as panning, tilting, and macro recording.
Instructions for powering the camcorder, charging the NP‑55/NP‑77 battery packs, inserting and ejecting 8 mm video cassettes, and the warranty terms are provided. Safety notes and wiring colour codes for AC operation (100 V‑240 V) are also included.
| Maximum recording time | 180 minutes |
|---|---|
| Battery pack NP‑55 runtime | ≈ 45 minutes |
| SP tape speed | ≈ 20.051 mm/sec |
| LP tape speed | ≈ 10.058 mm/sec |
When fully charged, the NP‑55 battery pack provides about 45 minutes of recording time.
Connect the VAR‑33 AC adaptor, press the POWER button, then press the CHARGE button; the CHARGE lamp turns yellow when charging is complete.
